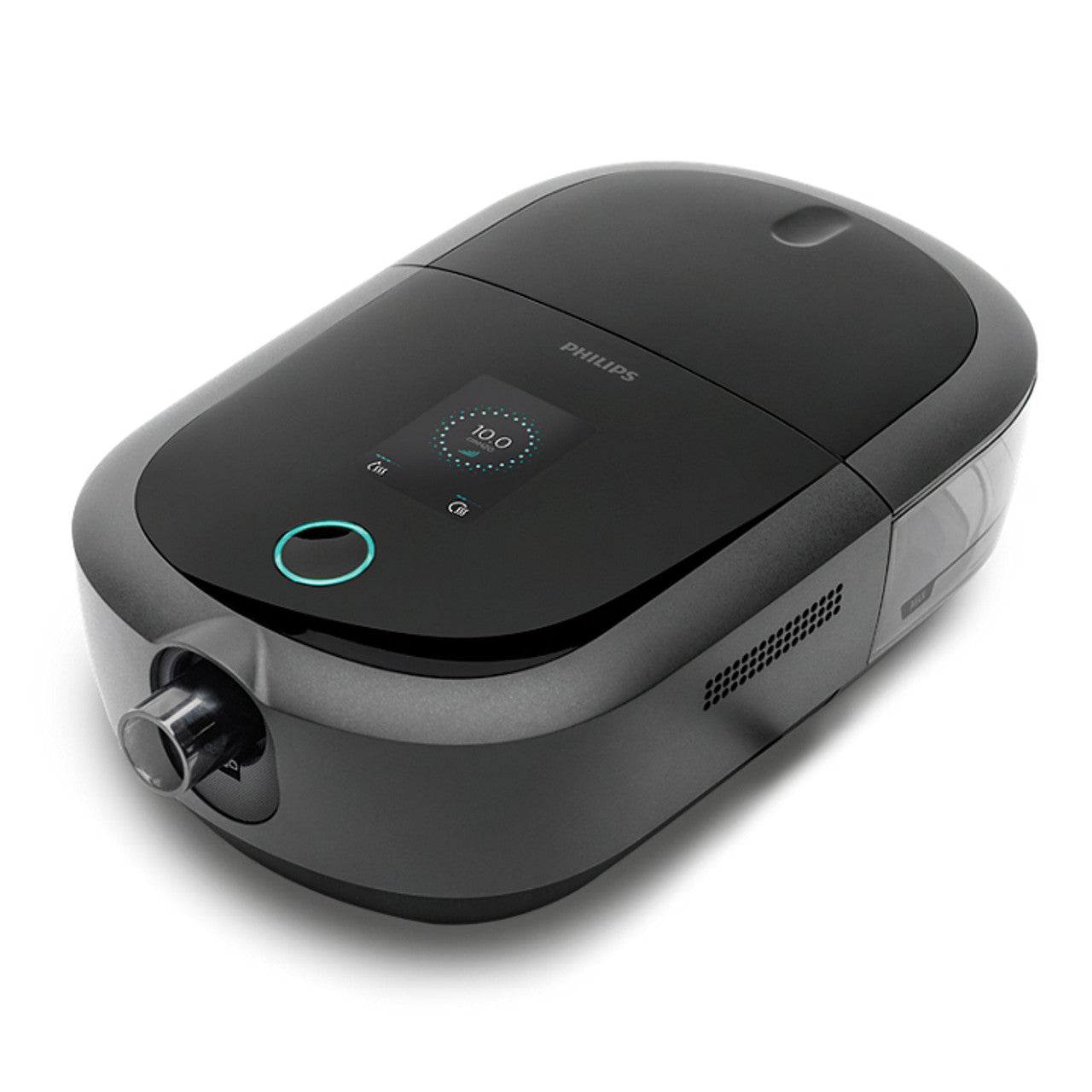

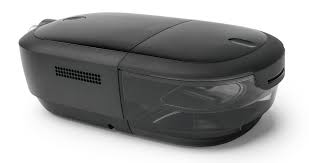

Philips DreamStation 2 Auto CPAP Advanced with humidifier and cellular modem

Item No. DEX520H13C: Philips DreamStation 2 Auto CPAP Advanced with Humidifier and Cellular Modem. Included accessories: Humidifier, 15ST, Bluetooth, Cellular Modem, Carrying Case

Philips DreamStation 2 Platform	Article no.	Included accessories	Accessories not included
Philips DreamStation 2 CPAP Advanced with humidifier and cellular modem, DE	DEX420H13C	Humidifier, 15ST, Bluetooth, cellular modem, carrying case	SD card
Philips DreamStation 2 Auto CPAP Advanced with humidifier and cellular modem, DE	DEX520H13C	Humidifier, 15ST, Bluetooth, cellular modem, carrying case	SD card
Philips DreamStation 2 Auto CPAP Advanced with humidifier and Bluetooth only, DE	DEX520H13	Humidifier, 15 pieces, Bluetooth, carrying case	SD card

Innovation in sleep apnea therapy

The DreamStation 2 Auto CPAP with its unique FLEX comfort settings and automatic pressure regulation combines efficient breathing therapy with maximum comfort.

Maximum comfort thanks to Flex Comfort technologies

The unique Flex comfort modes allow for a gentle build-up of pressure during inhalation and a reduction in pressure at the beginning of exhalation.

The new "Ramp Plus" feature with memory function allows the user to set a lower initial pressure, making it easier to fall asleep. Once activated, the function starts automatically.

Clinically proven Auto-CPAP algorithms

Depending on body position, sleep stage, or medication intake, the user may require different pressure levels throughout the night. The clinically validated auto-algorithm automatically adjusts the therapy pressure to these varying pressure needs. This enables efficient therapy with the lowest possible pressures.

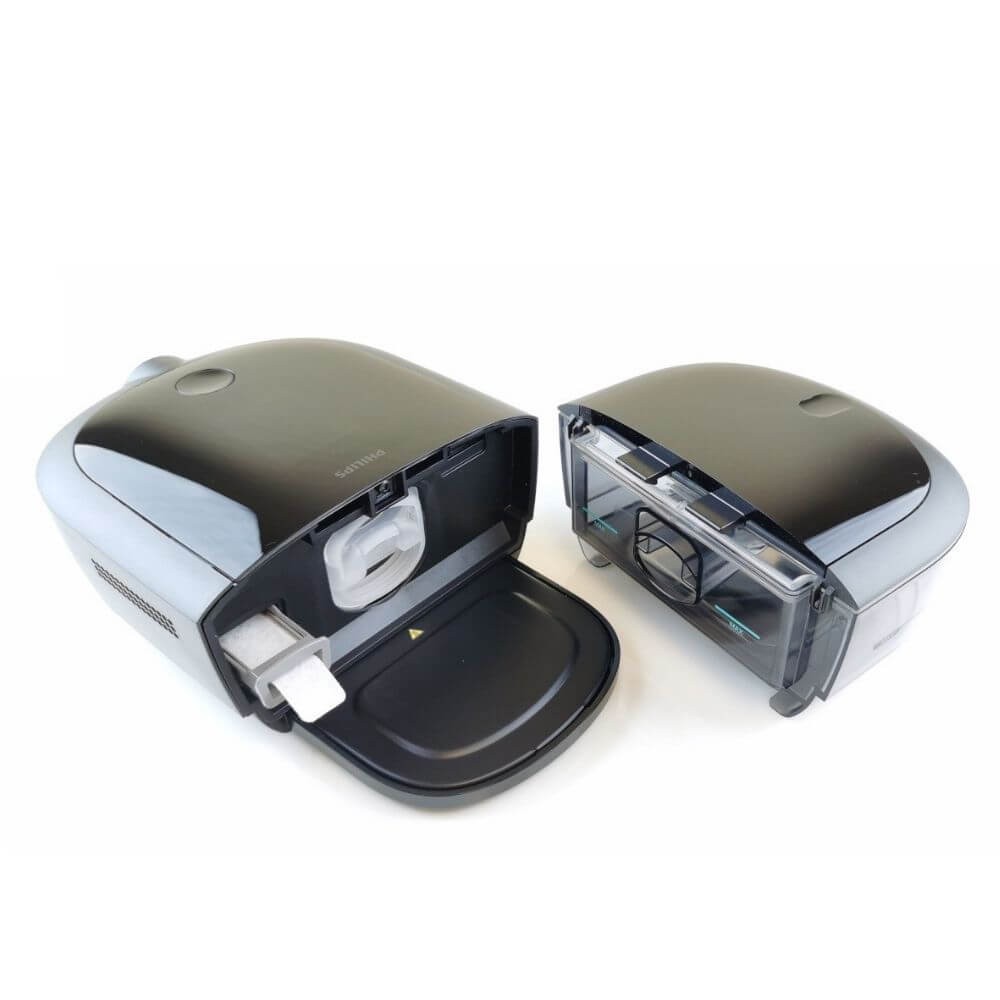

Integrated warm air humidifier

The integrated warm air humidifier automatically controls the heating output based on the room temperature, ensuring optimal humidification. The desired humidification level can be individually adjusted.

Individual therapy adjustment for greater compliance

The DreamStation 2 enables personalized CPAP therapy through special functions such as EZ-Start, CPAP-Check and AUTO-Trial, thus increasing therapy acceptance and compliance.

Quiet & safe therapy

The DreamStation 2 is particularly quiet, ensuring undisturbed sleep and greater therapy acceptance. The intuitive color touchscreen allows for clear navigation and easy operation. The performance check upon each start-up and the mask check after each use ensure safe therapy.

Simple and quick control of therapy effectiveness

Detailed therapy data such as flow curves, AHI, pressures, air leaks, periodic breathing rates, compliance, and much more are stored on the integrated SD card. The events are automatically evaluated using the Care Orchestrator evaluation software. This allows the physician to quickly and easily monitor therapy effectiveness.

Device size with humidifier 27.4 cm (L) x 15.8 cm (W) x 8.5 cm (H).
Humidifier settings: 0-5
Water chamber capacity: 325 ml
Pressure range: 4-20 cm H2O
Pressure relief: FLEX 1 to 3
Ramp: RAMP PLUS, time setting 15, 30, 45 min.
Launch pad pressure: 4 cm H2O standard
Power cable length: 6 ft / approx. 180 cm
DC converter: Yes
Battery option: Yes
Noise level: 27 dBA
Oxygen utilization: Yes
Oximetry compatible: Yes
Compatible with all masks: Yes
Automatic start/stop: Yes/Yes
Leak compensation: Yes
Data download: Yes via SD card
SD card included: No
Maximum pressure: 20 cmH20 (maximum recommended pressure)
AHI display: device, app
Smartphone app: DreamMapper app (iOS/Android)

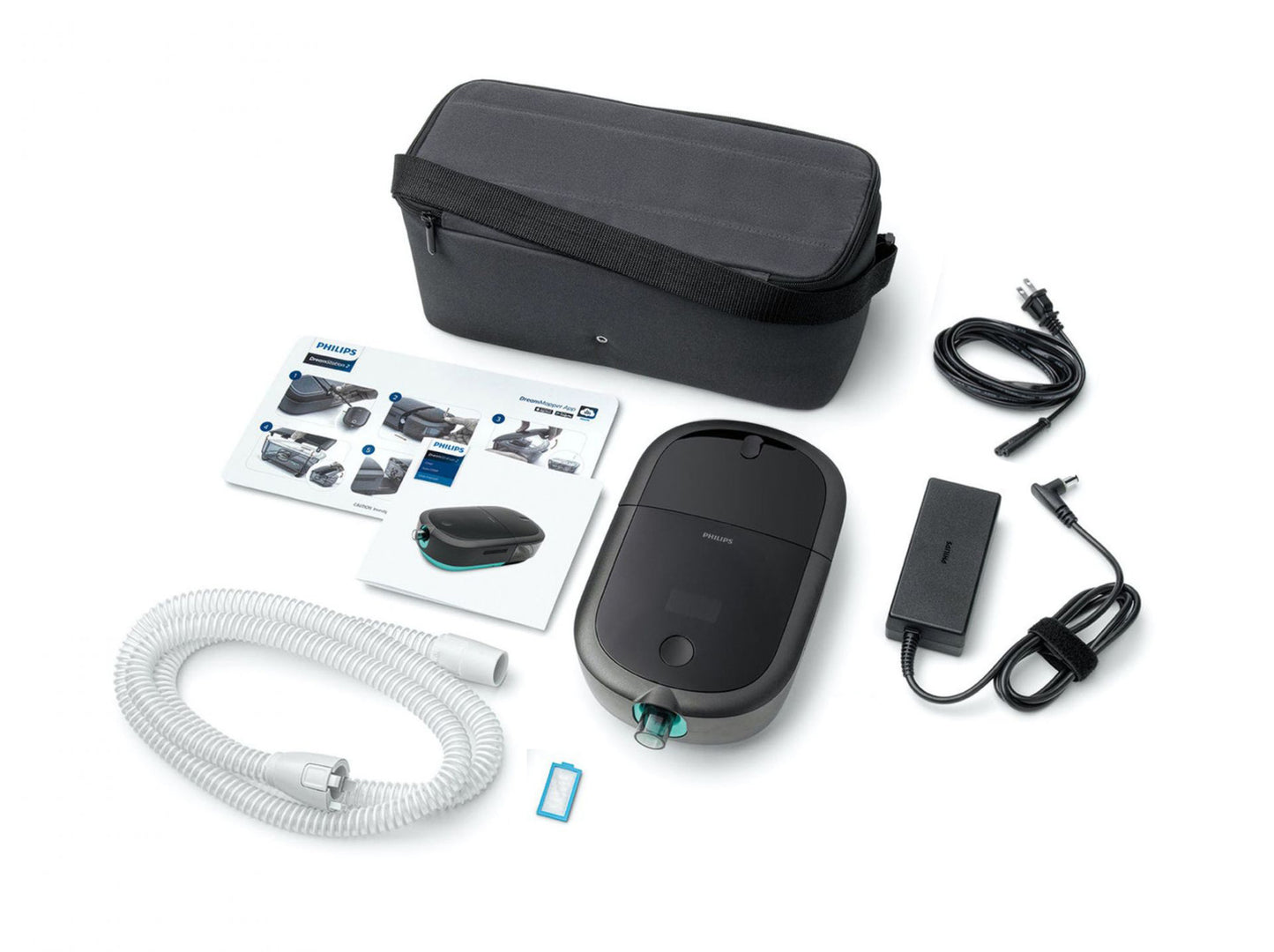

Scope of delivery

DreamStation 2 Auto CPAP Advanced User Manual
Quick guide
DreamStation 2 Advanced Auto
DreamStation 2 Carrying Case
hoses
filter
Power cable

Additional information:

Please note that this is a hygienic article. As such, returns are only accepted for articles with unopened, undamaged packaging.

When purchasing from outside the EU, please note that additional import duties may apply in your home country. / Please note that additional costs for importing into your home country can occur when purchasing from outside the EU zone.

___________

DOWNLOADS

Download the manual here:

Dream Station 2 - Series
